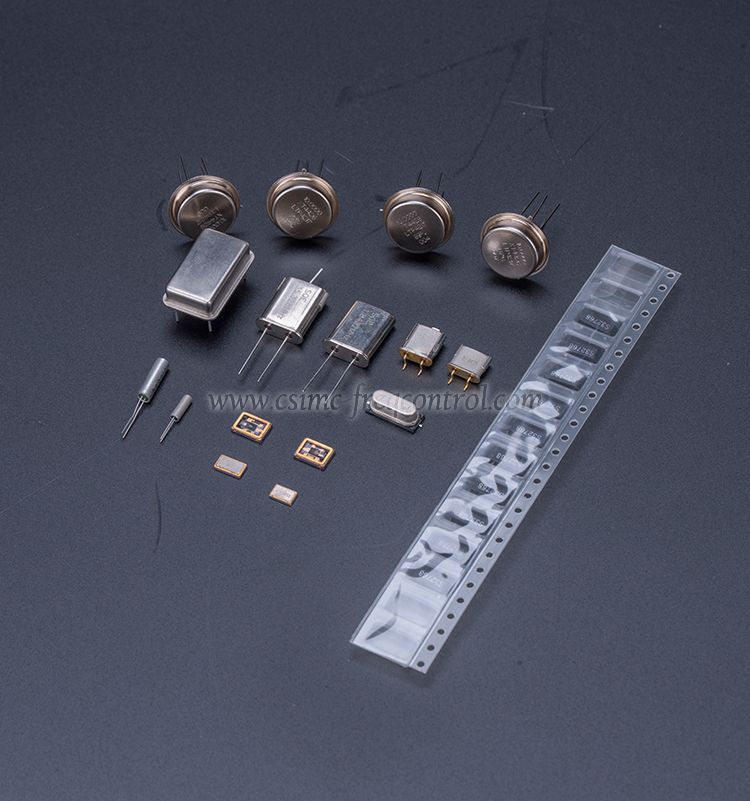

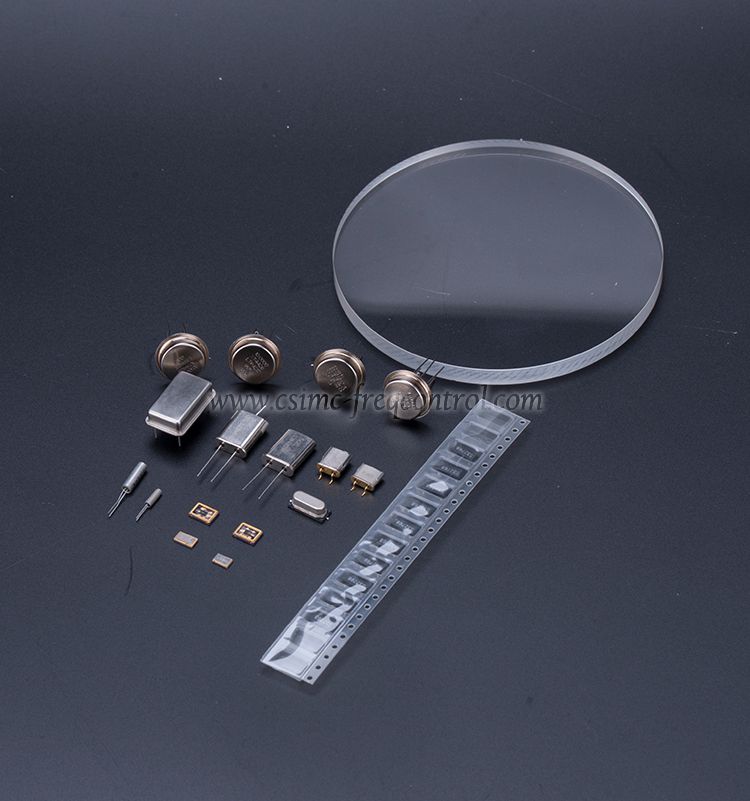

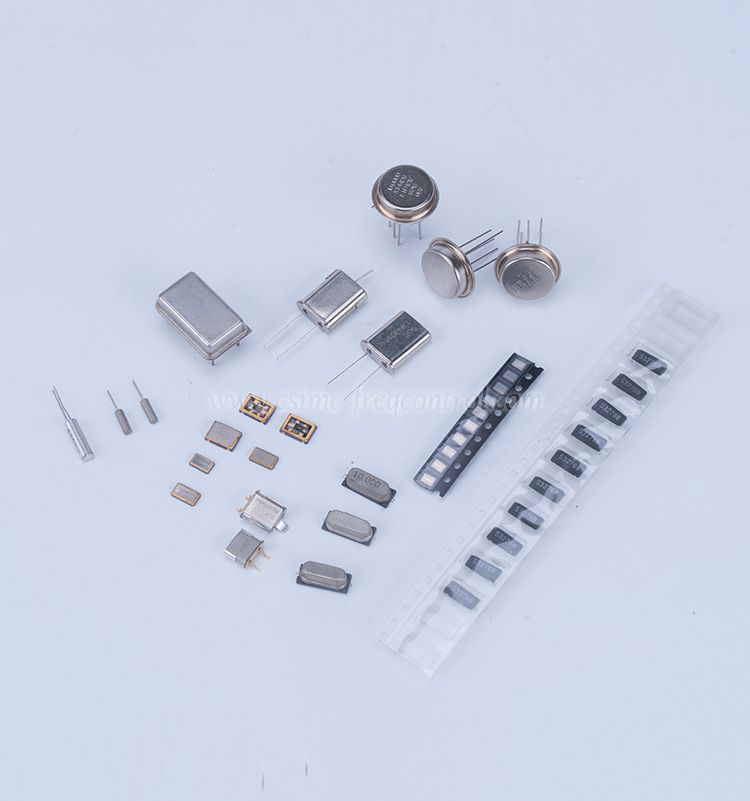

    Finsihed Crystal
    Finsihed CrystalFinsihed CrystalFinsihed Crystal
    Finsihed CrystalFinsihed CrystalFinsihed Crystal

    Finsihed Crystal

    Download the file
    Share
    TypePhotoFeatureDimension (mm)Frequency RangeData sheet
    FS-1Finsihed Crystal · Standard Package 8.0 x 3.8 x 2.532.768 KHz

    Tuning Fork.pd

    · Tight tolerance
    U1Finsihed Crystal · Standard Package 11.0 x 4.6 x 13.51.8MHZ~150MHz

    Crystal Resonator U1 Series.pdf

    · Tight tolerance
    U2Finsihed Crystal · Gull wing & 3rd lead SMD18.2 x 11.0 x 5.51.8MHZ~150MHz

    Crystal Resonator U2 Series.pd

    U3Finsihed Crystal · Tight tolerance11.0 x 4.6 x 10.710MHZ~150MHz

    Crystal Resonator U3 Series.pd

    U4 Finsihed Crystal· Gull wing & metal jacket SMD17.7 x 11.0 x 5.51.8432MHZ~150MHz

    Crystal Resonator U4 Series.pd

    S1Finsihed Crystal Low profile10.7 x 4.3 x 3.53.2MHz~70MHz

    Crystal Resonator S1 Series.pd

    S2Finsihed Crystal Low profile SMD11.4 x 4.6 x 4.03.2MHz~70MHz

    Crystal Resonator S2 Series.pd

    C1 Finsihed Crystal·Ceramic Metal SMD 7.0 x 5.0 x 1.27MHz~150MHz

    Crystal Resonator C1 Series.pd

    ·Tight tolerance
    C2Finsihed Crystal ·Ceramic Metal SMD 6.0 x 3.5 x 1.08MHz~125MHz

    Crystal Resonator C2 Series.pd

    ·Ultra thin
    C3Finsihed Crystal ·Ceramic Metal SMD 5.0 x3.2 x 0.710MHz~125MHz

    Crystal Resonator C3 Series.pd

    ·Ultra thin
    X Finsihed Crystal· Ceramic metal SMD 7.0 × 5.0 ×1.20.5M~135M

    Crystal Oscillator X Series.pd

    · Low jitter
    XS Finsihed Crystal· Ceramic metal SMD 5.0 × 3.2 ×1.20.5M~135M

    Crystal Oscillator XS Series.pd

    · Low jitter
    XFFinsihed Crystal · Sealed crystal inside 20.4 × 12.8 × 7.00.5M~135M

    Crystal Oscillator XF Series.pd

    · Tight tolerance
    V Finsihed Crystal· Ceramic metal SMD 7.0 × 5.0 ×1.61M~80M

    VCXO V Series.pd

    · Low jitter
