    Tellurium Oxide(TeO2)
    Tellurium Oxide(TeO2)Tellurium Oxide(TeO2)Tellurium Oxide(TeO2)
    Tellurium Oxide(TeO2)Tellurium Oxide(TeO2)Tellurium Oxide(TeO2)

    Tellurium Oxide(TeO2)

    Tellurium dioxide (TeO2) is a solid oxide of tellurium. It is encountered in two different forms, the yellow orthorhombic mineral tellurite, β-TeO2, and the synthetic, colourless tetragonal (paratellurite), α-TeO2. Most of the information regarding reaction chemistry has been obtained in studies involving paratellurite, α-TeO2.

    Download the file
    Share

    Brief1: Tellurium dioxide (TeO2) is a solid oxide of tellurium. It is encountered in two different forms, the yellow orthorhombic mineral tellurite, β-TeO2, and the synthetic, colourless tetragonal (paratellurite), α-TeO2. Most of the information regarding reaction chemistry has been obtained in studies involving paratellurite, α-TeO2.


    Brief2:
    TeO2 crystal is a kind of acousto-optic material with high quality factor. T、there are good birefringence and optical rotatory properties, and the velocity of propagation is slow along [110].If under the same clear aperture, use TeO2 single crystal made the resolution of the acousto-optic device can increases the order of magnitude, the response speed, driving power is small, high diffraction efficiency, stable and reliable performance, etc.

    Brief1: Tellurium dioxide (TeO2) is a solid oxide of tellurium. It is encountered in two different forms, the yellow orthorhombic mineral tellurite, β-TeO2, and the synthetic, colourless tetragonal (paratellurite), α-TeO2. Most of the information regarding reaction chemistry has been obtained in studies involving paratellurite, α-TeO2.

    Density(g/cm3)6
    Melting Point (°C)733
    Hardness (Mohs)4
    Colourtransparency
    Transparent band(mm)0.33-5.0
    Transmittance@632.8nm>70%
    Index of Refraction@632.8nmNe=2.411 No=2.258
    thermal conductivity coefficient(mW/cm*℃)30
    velocity(km/sec)0.617 for shear wave along <110> ;4.26 for longitudinal wave along <001>


    Brief2: TeO2 crystal is a kind of acousto-optic material with high quality factor. T、there are good birefringence and optical rotatory properties, and the velocity of propagation is slow along [110].If under the same clear aperture, use TeO2 single crystal made the resolution of the acousto-optic device can increases the order of magnitude, the response speed, driving power is small, high diffraction efficiency, stable and reliable performance, etc


    Application:

    Can be made into all kinds of acousto-optic device, such as acousto- optical deflector, acousto-optic q-switched, surface acoustic wave devices, etc, thus putting these crystals are widely used in laser radar, television, and a large screen display device scanning optical memory, photon computer and laser communication, etc.


    Our ability:

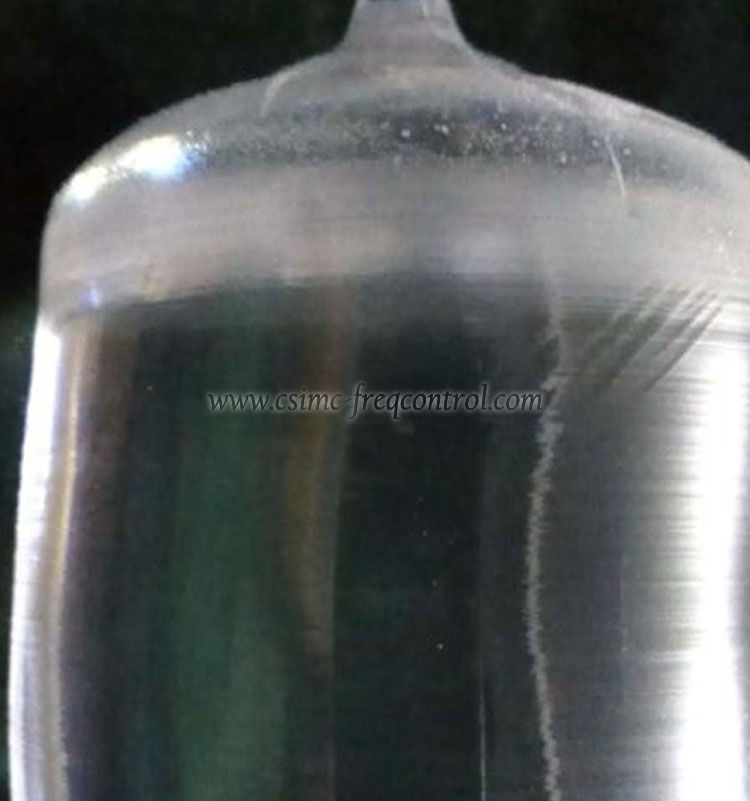

    we can provide customers with Ф 2 inch, 3 inch, 4 inch Ф Ф crystal rods and various types.
