    Packing details

    May. 10, 2024

    CQT Packing Methords

    Packing code

    Pack MethordIntroduction And Explanation介绍及说明

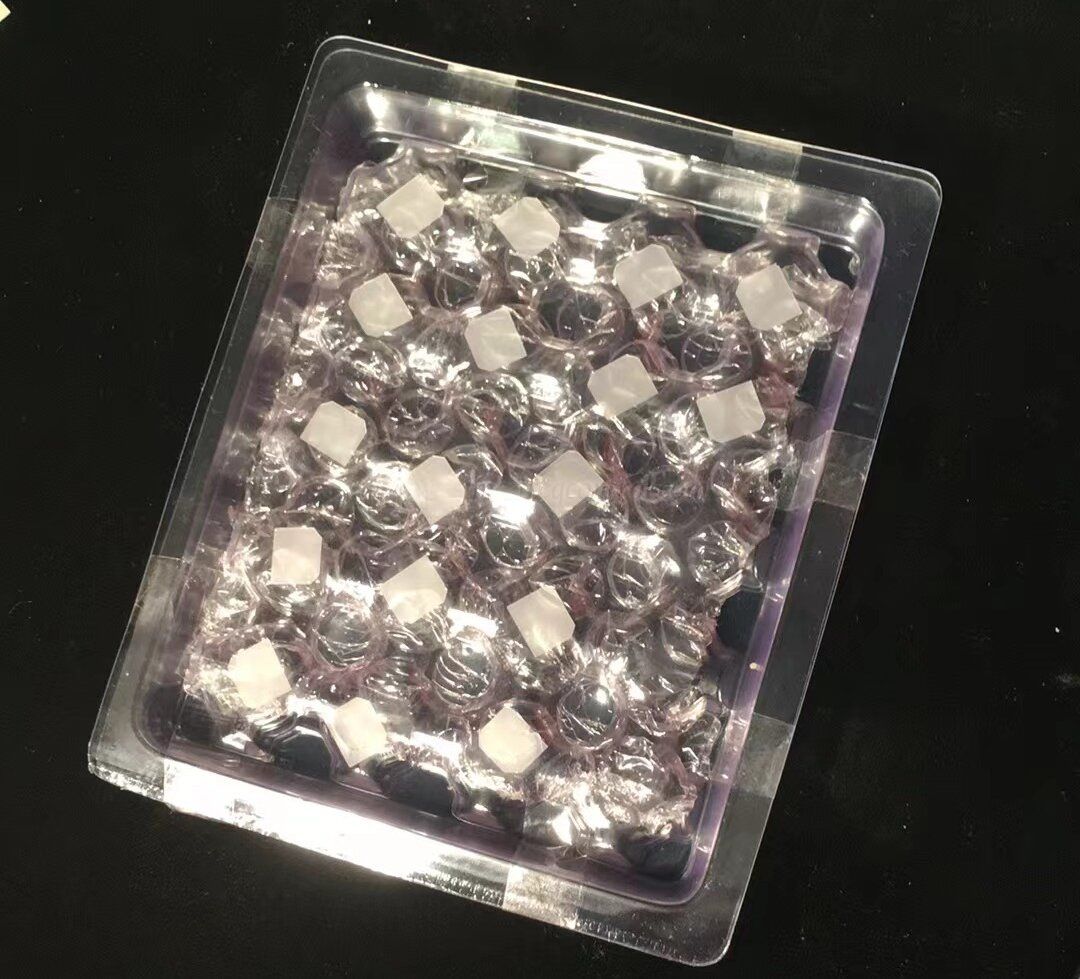

    CQTPACK001Packing detailsThe newly developed packaging box is suitable for the packaging and transportation of various types of small piezoelectric/optical ultra-thin blanks, and the entire packaging number is 100 pieces, which can avoid the edge damage caused by collisions between various types of small blanks in the transportation process, and also avoid the adhesion between blanks caused by static electricity phenomenon . The outer layer is plastic-sealed to ensure that the chip does not wobble in its own position最近新研发出来的包装盒,适用于各类小型压电类/光学类等超薄晶片的包装盒运输,整个包装数量为100片,可以避免在各类小晶片在运输过程中相互碰撞造成的边缘损坏,同时也避免了由于静电现象造成晶片相互间的粘连。外层采用吸塑封装,确保晶片在自身的位置上没有晃动。
    CQTPACK002Packing details

    1. The first packaging box is suitable for the packaging and transportation of all kinds of small piezoelectric/optical ultra-thin wafers, and the entire packaging number is 20 pieces to ensure that the wafers do not shake in their own positions.

    2. The second type of packaging is suitable for all kinds of small piezoelectric/optical ultra-thin wafers, small number of packaging, the number of packaging is 1-5 pieces, and the pieces are separated by dust-free paper.

    3. The third test tube packaging is suitable for all kinds of small piezoelectric/optical ultra-thin wafers with small diameters, which are packed in dust-free paper and placed in test tubes to avoid edge damage caused by collisions between various types of small wafers during transportation.


    1. 第一款包装盒适用于各类小型压电类/光学类等超薄晶片的包装盒运输,整个包装数量为20片,可以避免在各类小晶片在运输过程中相互碰撞造成的边缘损坏,同时也避免了由于静电现象造成晶片相互间的粘连。确保晶片在自身的位置上没有晃动。                    2.第二款包装适用各类小型压电类/光学类等超薄晶片,小数量的包装,包装数量为1-5片,片与片之间用无尘纸隔开,避免各类小晶片在运输过程中相互碰撞造成的边缘损坏,同时也避免了由于静电现象造成晶片相互间的粘连。                                                      3.第三款试管包装适用各类小型压电类/光学类等超薄晶片,直径较小,用无尘纸包装后放入试管,避免各类小晶片在运输过程中相互碰撞造成的边缘损坏。
    CQTPACK003Packing detailsThis packaging box is suitable for the packaging and transportation of all kinds of small piezoelectric/optical ultra-thin wafers, and the entire packaging number is 20 pieces, which can avoid the edge damage caused by the collision of various small wafers in the transportation process, and also avoid the adhesion between wafers caused by electrostatic phenomenon. Make sure the chip does not wobble in its position.此包装盒适用于各类小型压电类/光学类等超薄晶片的包装盒运输,整个包装数量为20片,可以避免在各类小晶片在运输过程中相互碰撞造成的边缘损坏,同时也避免了由于静电现象造成晶片相互间的粘连。确保晶片在自身的位置上没有晃动。

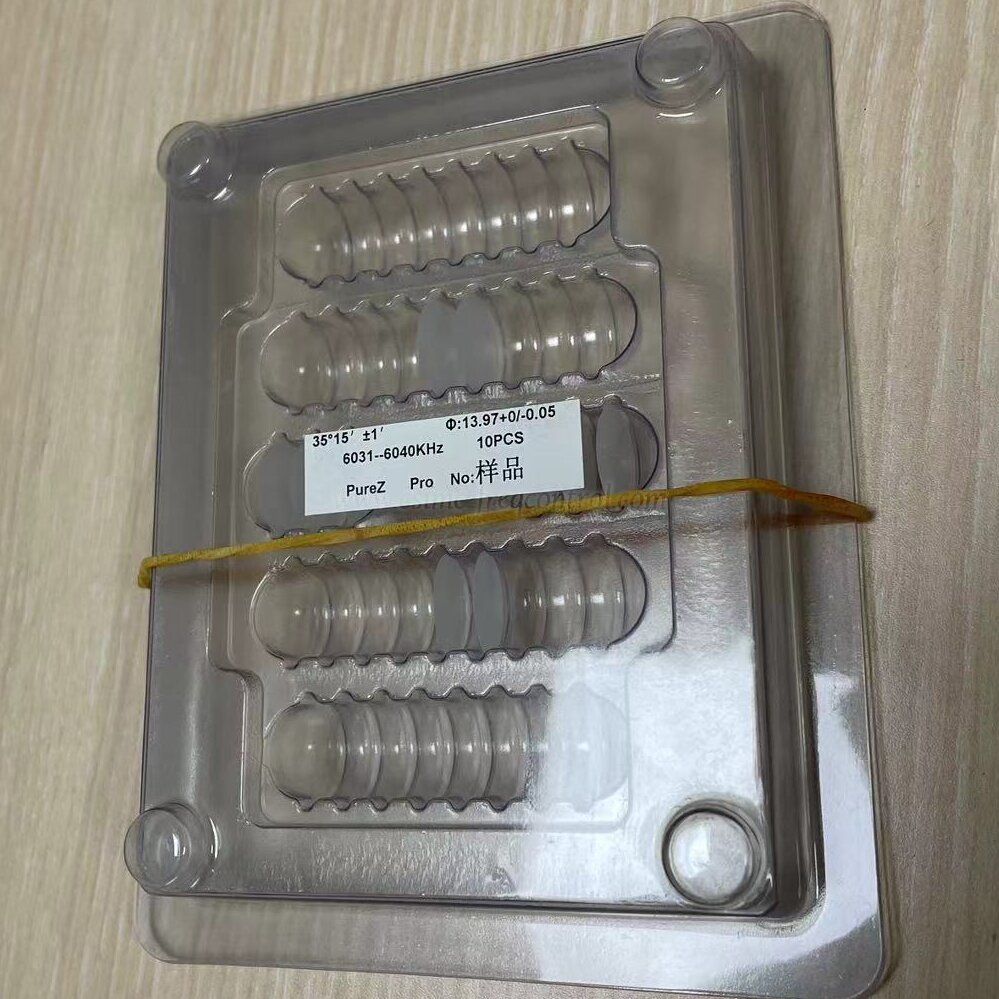

    CQTPACK004Packing detailsThis packaging box is suitable for 5M,6M monitor blanks, diameter 13.97mm. It can avoid the chip caused by the collision of the blank during the transportation process, and the blank edge damage.此款包装盒适用5M,6M晶控片,直径13.97mm。可以避免晶片在运输过程中相互碰撞造成的片与片之间的磨损,以及晶片边缘损坏。

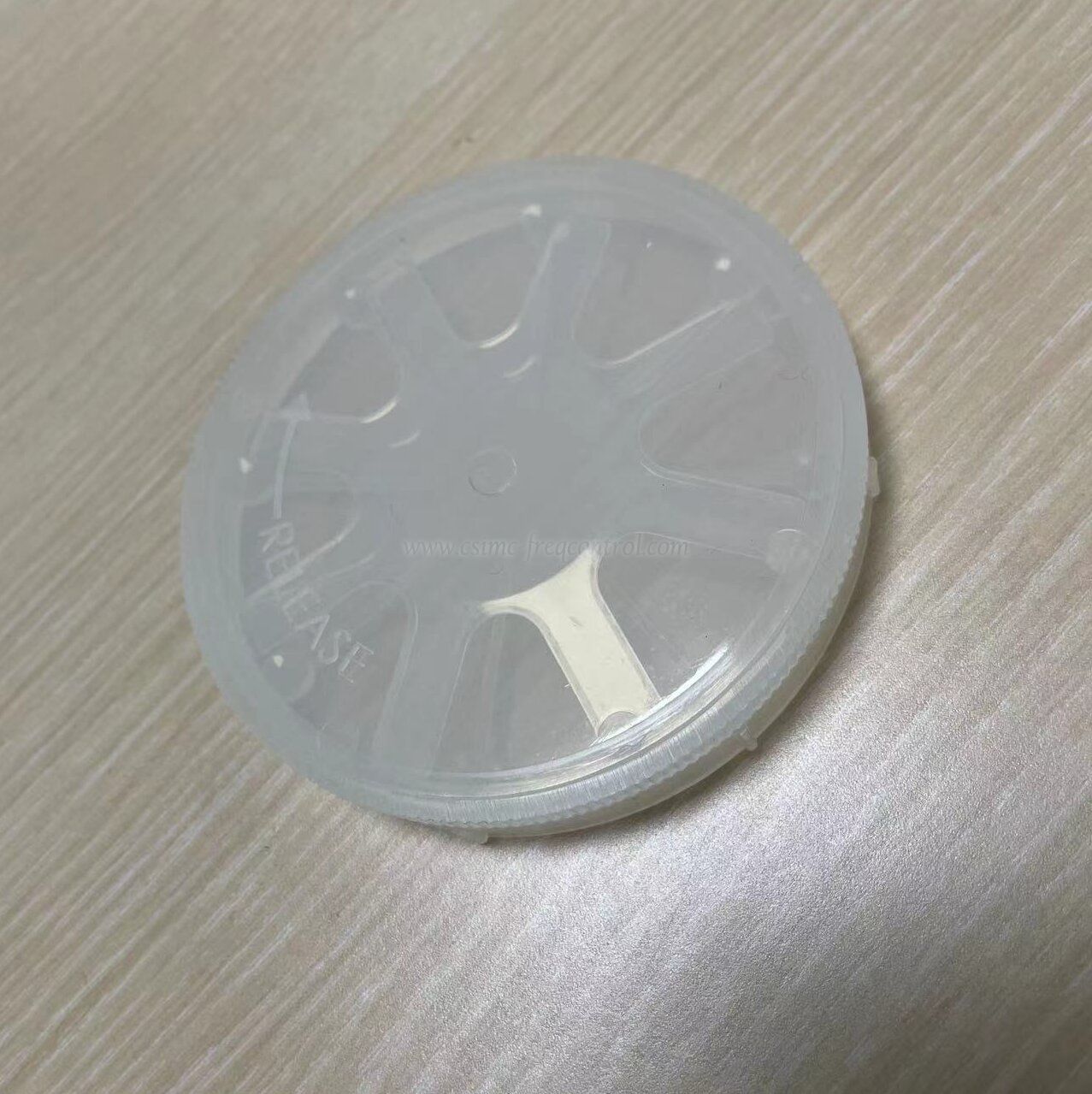

    CQTPACK005Packing detailsThis 2 inch single tray is suitable for 2" quartz wafers, silicon wafers, sapphire wafers and other wafers for single wafer packaging.

    The single tray has a wide range of adaptability, storage and transportation,  it can protect high costed wafers, thinner wafers and wafers with strict surface quality requirements, avoid collision efficient and safe, to meet the special storage and transportation requirements of the product, used to protect and transport wafers.

    2寸单片盒 适用存放石英晶片,硅片,蓝宝石等Wafer晶片的单片包装。

    单片盒有广泛的适应性、存放和运输,可保护高单价晶圆,较薄的晶圆片以及表面质量要求严格的晶圆片,避免碰撞高效安全,满足产品特殊存放及其运输要求,用来保护及运输晶圆片。

    CQTPACK006Packing details

    This 4 inch single tray is suitable for 4" quartz wafers, silicon wafers, sapphire wafers and other wafers for single wafer packaging.

    The single tray has a wide range of adaptability, storage and transportation,  it can protect high costed wafers, thinner wafers and wafers with strict surface quality requirements, avoid collision efficient and safe, to meet the special storage and transportation requirements of the product, used to protect and transport wafers.

    4寸单片盒   适用存放石英晶片,硅片,蓝宝石等Wafer晶片的单片包装。

    单片盒有广泛的适应性、存放和运输,可保护高单价晶圆,较薄的晶圆片以及表面质量要求严格的晶圆片,避免碰撞高效安全,满足产品特殊存放及其运输要求,用来保护及运输晶圆片。

    CQTPACK007Packing details

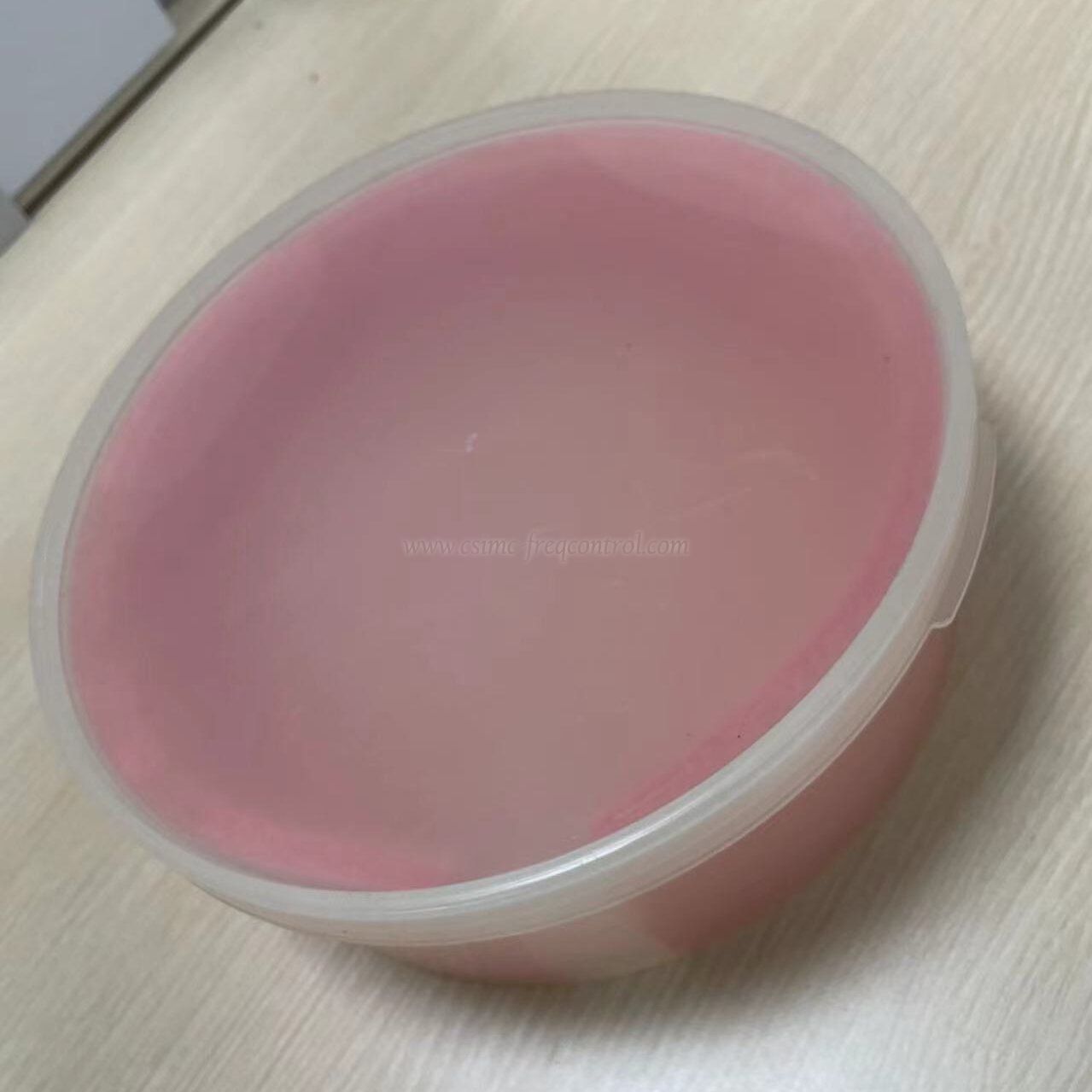

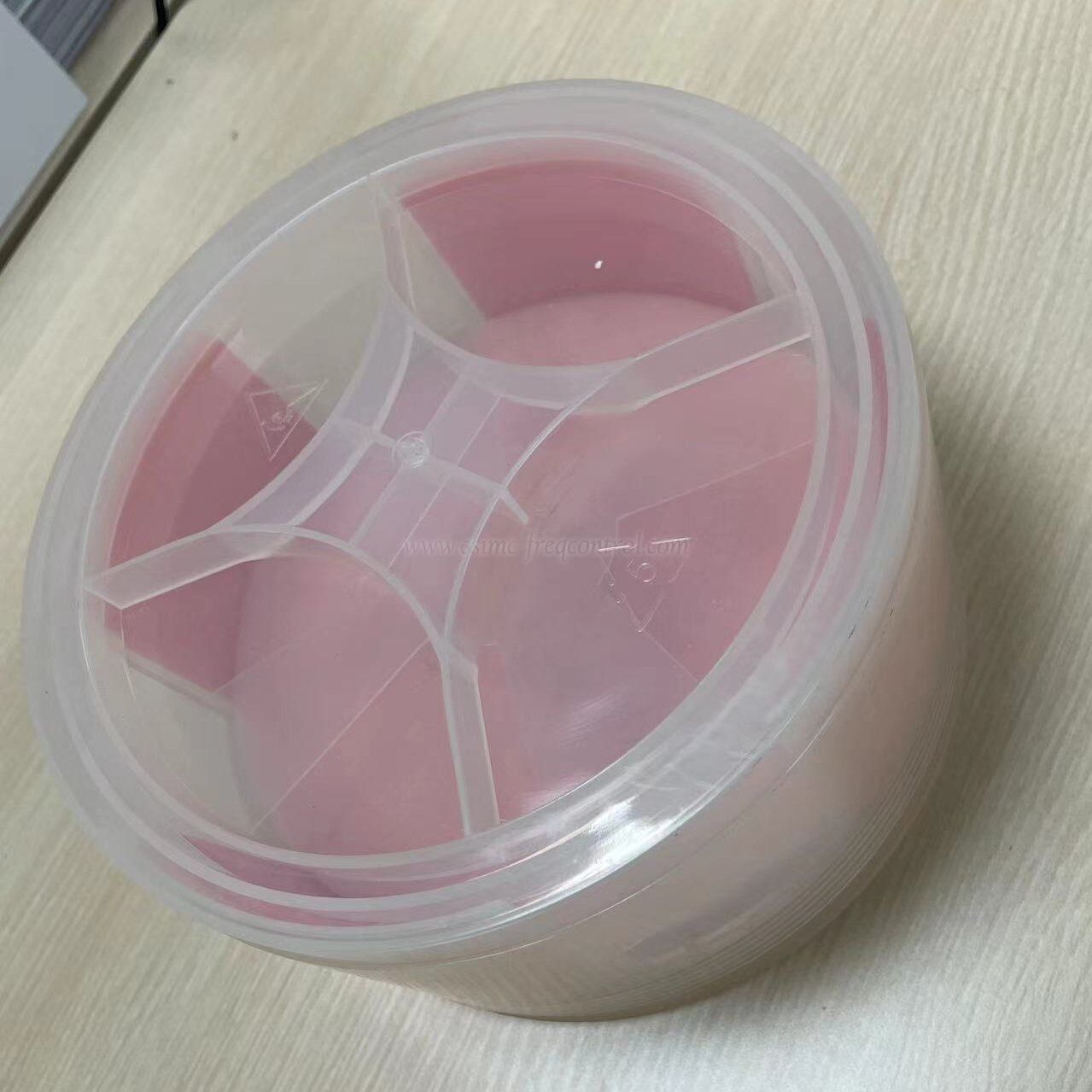

    This 4" Wafer Jar Packaging can pack  25pcs to 50pcs of 4" wafers. Used for packaging silicon wafers, quartz wafer, glass wafers, sapphire wafers and other products.

    Each wafer is separated by anti-static paper, with anti-static pearl cotton wrapped around the edge, used for protecting the delivery and temporary storage of wafers, placing wafers horizontally to avoid collision, stackable for easy storage, capable of placing multiple wafers as well as thin wafers that cannot be packaged in cassette.

    4寸晶圆包装盒 可存放25片至50片的4寸晶圆片。用于硅片、石英晶片、玻璃片、蓝宝石片等产品的包装。

    每片晶片之间用防静电纸隔开,边缘有防静电珍珠棉包裹,用于保护运送、暂存晶圆片,水平放置晶圆片,避免碰撞,可堆叠便于存放,能够放置多片晶圆以及较薄不能用卡盒包装的晶圆片

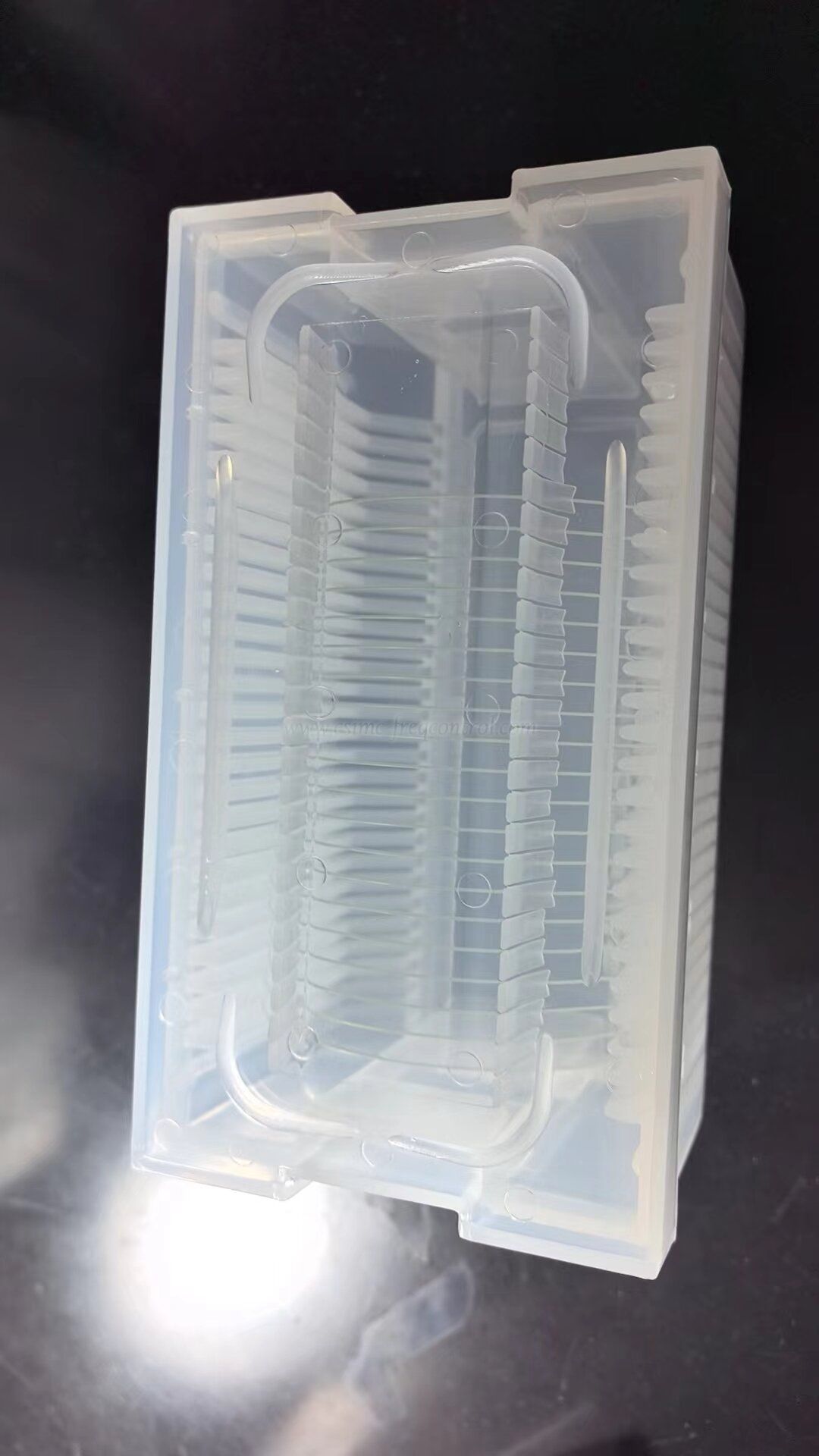

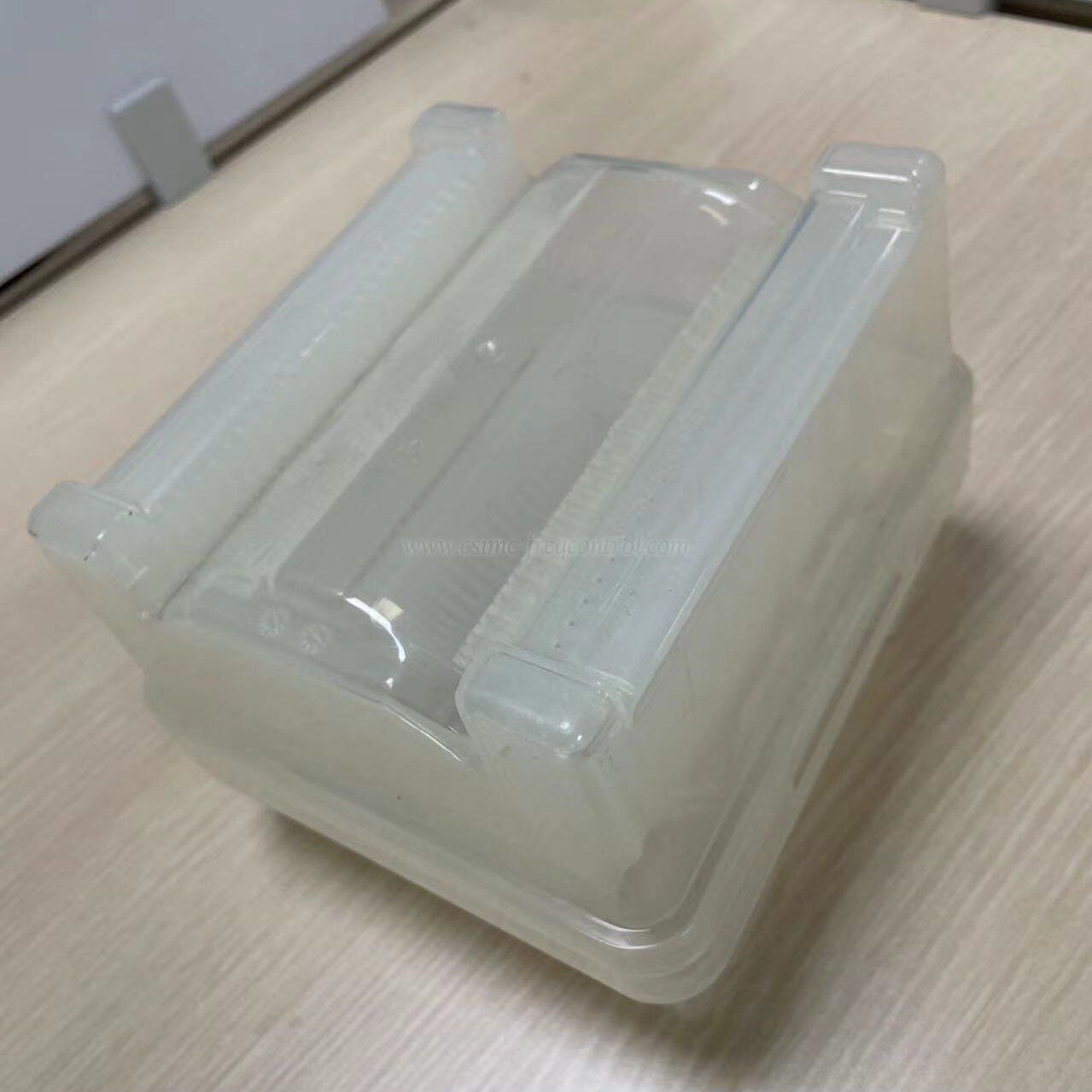

    CQTPACK008Packing detailsBox name: 2-inch standard wafer cassette

    The 2-inch wafer cassette we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 2-inch (50.8mm) diameter wafers. Especially suitable for customers with high cleanliness requirements, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can avoid the damage caused by the collision between the chips in the transportation process, and also avoid the adhesion between the chips caused by electrostatic phenomenon

    Application field:

    Semiconductor manufacturing

    Microelectronics research

    Wafer storage and transportation

    包装盒名称:2英寸标准晶圆卡盒

    我们所使用的2英寸插片卡塞盒是专为半导体行业设计的高精度存储解决方案,适用于各类2英寸(50.8mm)直径的晶圆片。特别适合洁净度要求高的客户,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以避免晶片在运输过程中相互碰撞造成的损坏,同时也避免了由于静电现象造成晶片相互间的粘连

    应用领域:

    半导体制造

    微电子研究

    晶圆存储与运输

    CQTPACK009Packing details

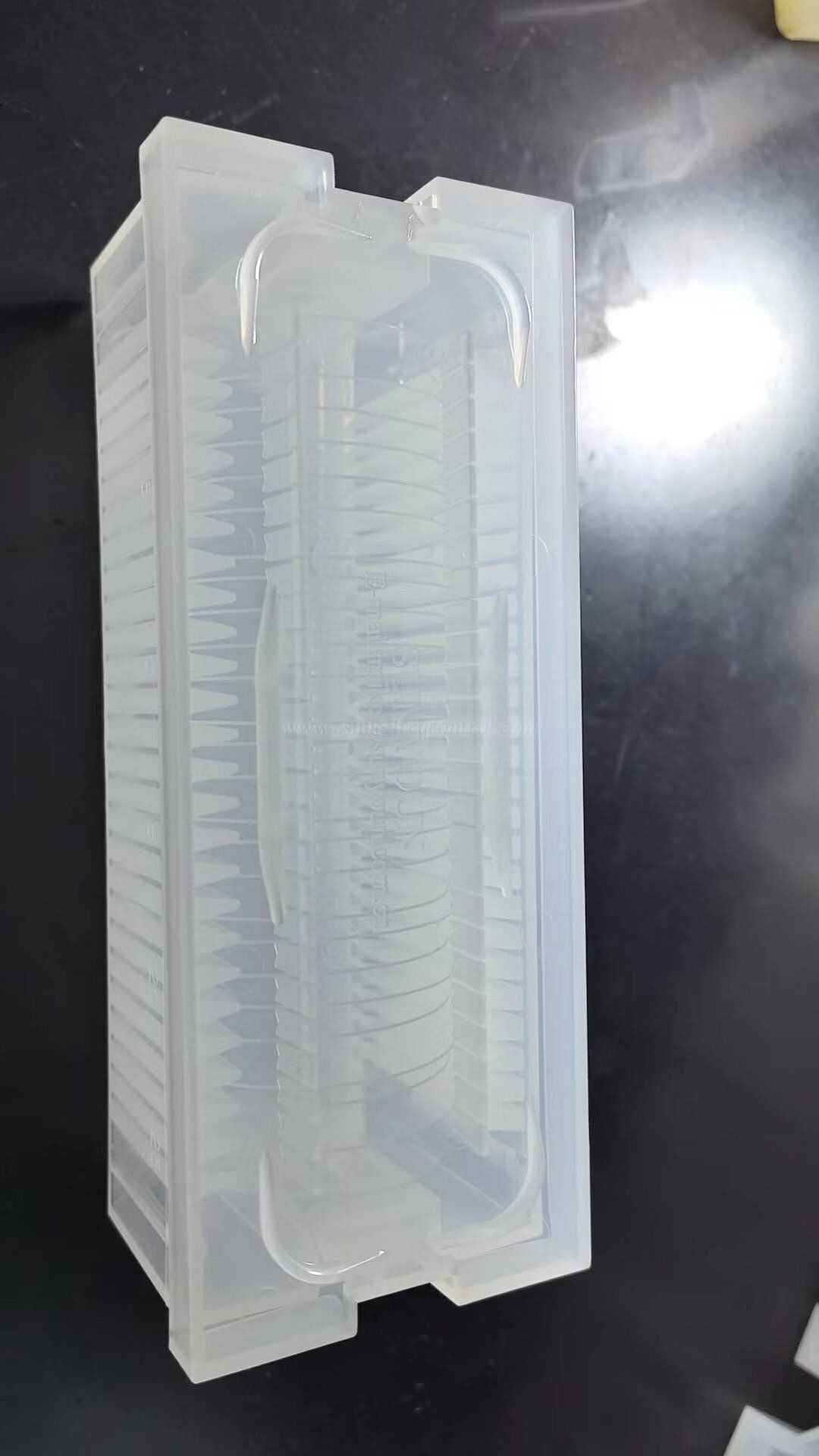

    Box name: 3-inch standard wafer cassette

    The 3-inch wafer cassette we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 3-inch (76.2mm) diameter wafers. Especially suitable for customers with high cleanliness requirements, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can avoid the damage caused by the collision between the chips in the transportation process, and also avoid the adhesion between the chips caused by electrostatic phenomenon

    Application field:

    Semiconductor manufacturing

    Microelectronics research

    Wafer storage and transportation

    包装盒名称:3英寸标准晶圆卡盒

    我们所使用的3英寸插片卡塞盒是专为半导体行业设计的高精度存储解决方案,适用于各类3英寸(76.2mm)直径的晶圆片。特别适合洁净度要求高的客户,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以避免晶片在运输过程中相互碰撞造成的损坏,同时也避免了由于静电现象造成晶片相互间的粘连

    应用领域:

    半导体制造

    微电子研究

    晶圆存储与运输

    CQTPACK010Packing details

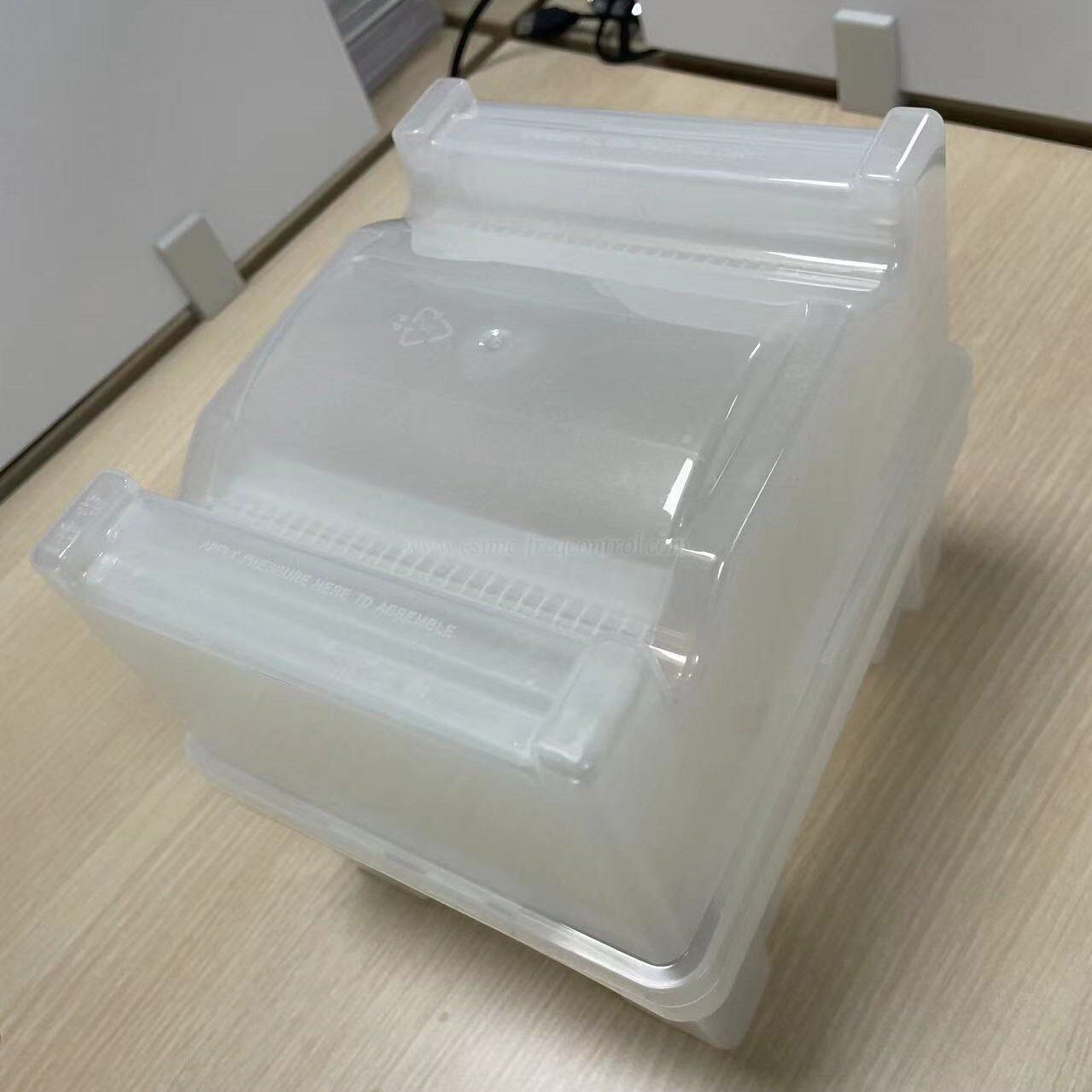

    Box name: 4-inch standard wafer cassette

    The 4-inch wafer cassette we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 4-inch (100mm) diameter wafers. Especially suitable for customers with high cleanliness requirements, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can avoid the damage caused by the collision between the chips in the transportation process, and also avoid the adhesion between the chips caused by electrostatic phenomenon

    Application field:

    Semiconductor manufacturing

    Microelectronics research

    Wafer storage and transportation

    包装盒名称:4英寸标准晶圆卡盒

    我们所使用的4英寸插片卡塞盒是专为半导体行业设计的高精度存储解决方案,适用于各类4英寸(100mm)直径的晶圆片。特别适合洁净度要求高的客户,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以避免晶片在运输过程中相互碰撞造成的损坏,同时也避免了由于静电现象造成晶片相互间的粘连

    应用领域:

    半导体制造

    微电子研究

    晶圆存储与运输

    CQTPACK011Packing details

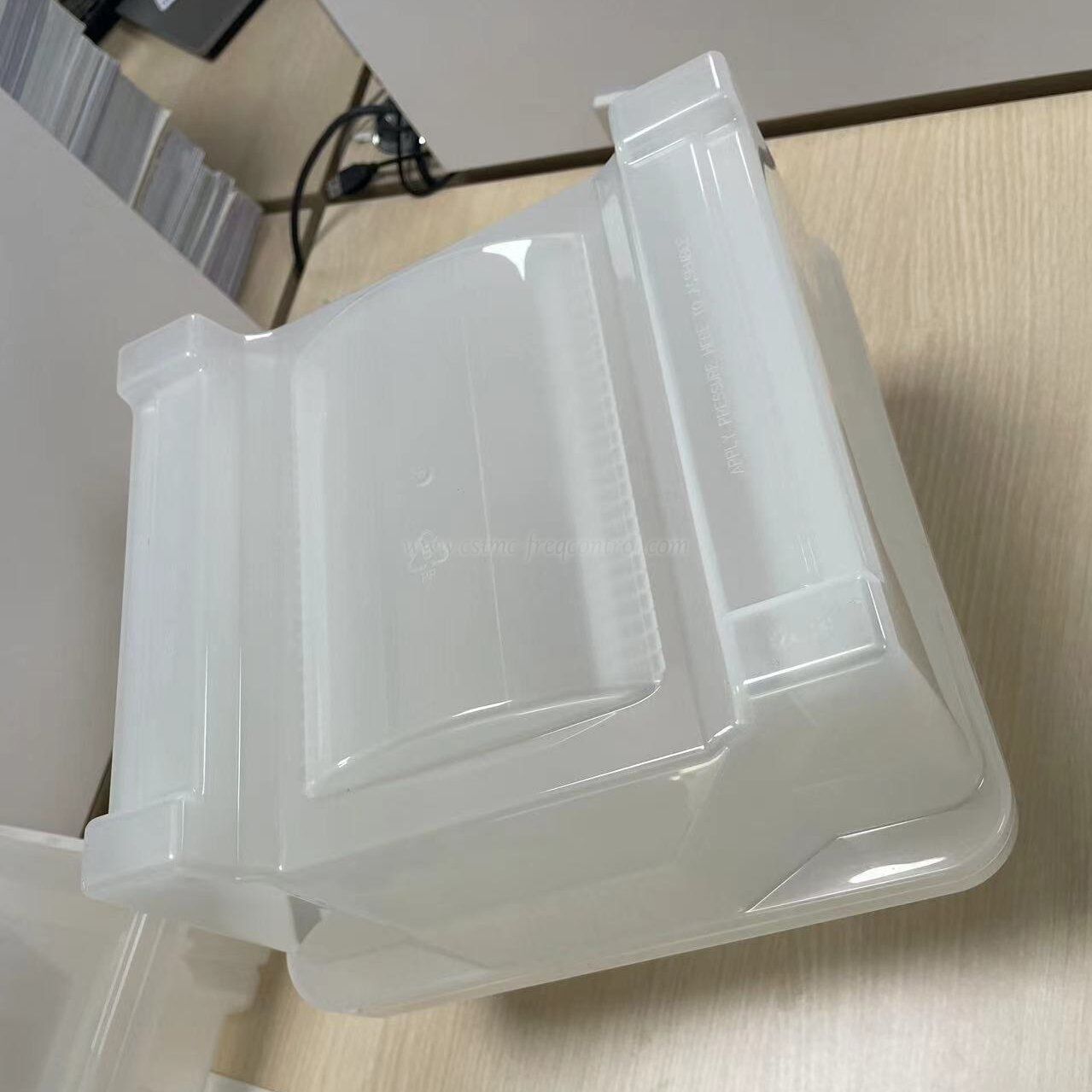

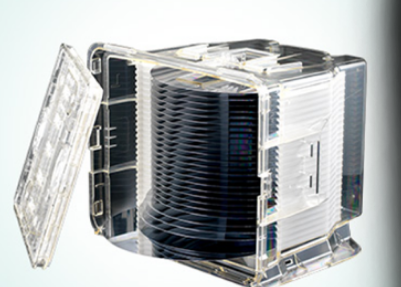

    Box name: 6-inch standard wafer cassette

    The 6-inch wafer cassette we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 6-inch (150mm) diameter wafers. Especially suitable for customers with high cleanliness requirements, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can avoid the damage caused by the collision between the chips in the transportation process, and also avoid the adhesion between the chips caused by electrostatic phenomenon

    Application field:

    Semiconductor manufacturing

    Microelectronics research

    Wafer storage and transportation

    包装盒名称:6英寸标准晶圆卡盒

    我们所使用的6英寸插片卡塞盒是专为半导体行业设计的高精度存储解决方案,适用于各类6英寸(150mm)直径的晶圆片。特别适合洁净度要求高的客户,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以避免晶片在运输过程中相互碰撞造成的损坏,同时也避免了由于静电现象造成晶片相互间的粘连

    应用领域:

    半导体制造

    微电子研究

    晶圆存储与运输

    CQTPACK012Packing details

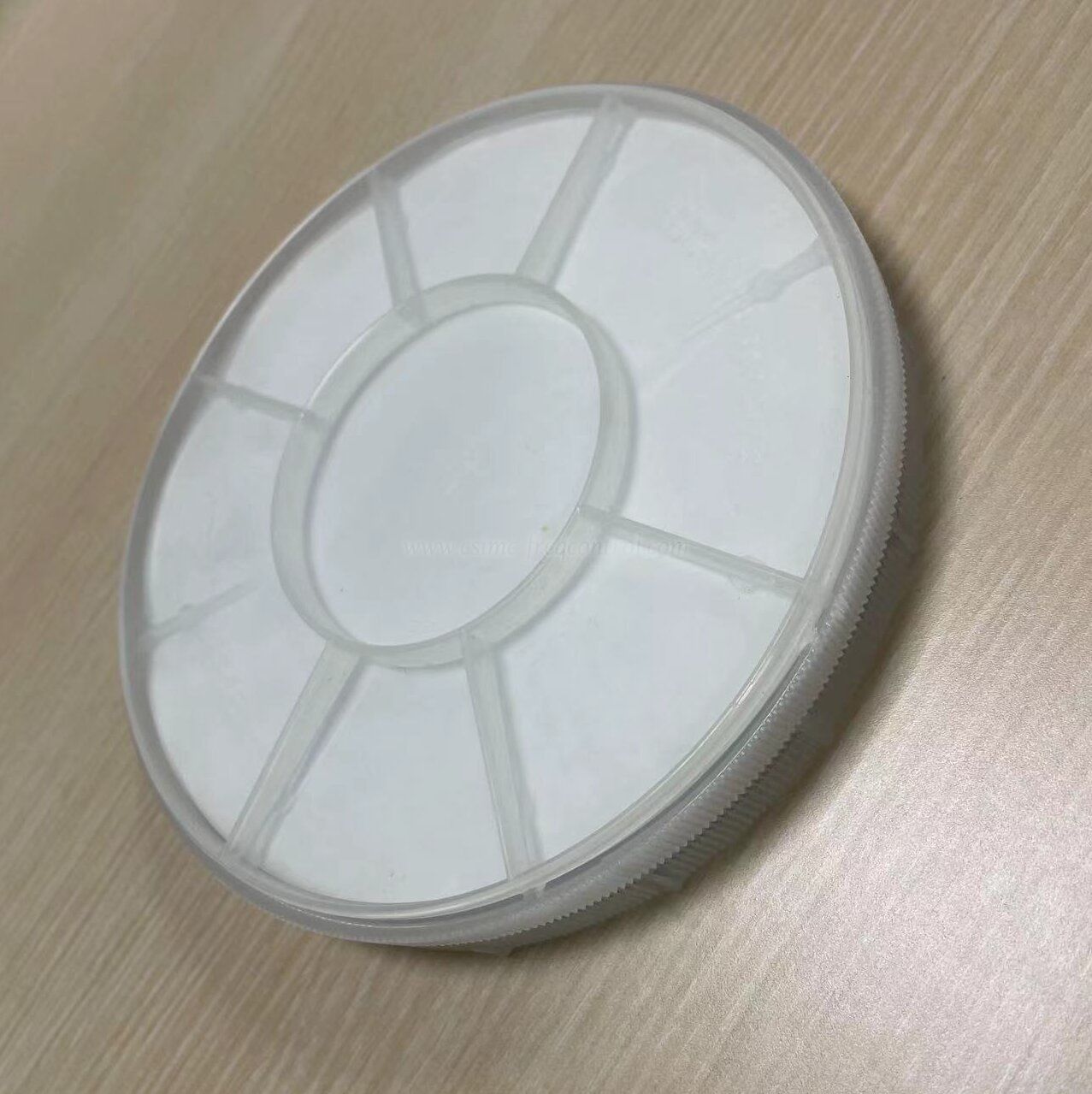

    Box name: 8-inch wafer JAR

    The 8-inch wafer JAR we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 8-inch (200mm) diameter wafers. Especially suitable for thick or ultra-thin wafers, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can greatly reduce the probability of damage caused by turbulence during transportation. This kind of wafer box is more light and portable.

    Application field:

    Integrated circuit manufacturing

    Photoelectric industry

    Micromechanical systems (MEMS) manufacturing

    Research and laboratory wafer storage

    包装盒名称:8英寸圆型晶圆盒

    我们所使用的8英寸晶圆盒是专为半导体行业设计的高精度存储解决方案,适用于各类8英寸(200mm)直径的晶圆片。特别适合厚度较厚或者超薄的晶圆片,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以大幅度降低晶片在运输过程中因颠簸而造成损坏的概率。此种晶圆盒更加的轻便,便携。

    应用领域:

    集成电路制造

    光电行业

    微机械系统(MEMS)制造

    科研和实验室晶圆存储

    CQTPACK013Packing details

    Box name: 8-inch wafer JAR

    The 8-inch wafer JAR we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 8-inch (200mm) diameter wafers. Especially suitable for thick or ultra-thin wafers, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can greatly reduce the probability of damage caused by turbulence during transportation. This kind of wafer box is more light and portable.

    Application field:

    Integrated circuit manufacturing

    Photoelectric industry

    Micromechanical systems (MEMS) manufacturing

    Research and laboratory wafer storage

    包装盒名称:8英寸圆型晶圆盒

    我们所使用的8英寸晶圆盒是专为半导体行业设计的高精度存储解决方案,适用于各类8英寸(200mm)直径的晶圆片。特别适合厚度较厚或者超薄的晶圆片,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以大幅度降低晶片在运输过程中因颠簸而造成损坏的概率。此种晶圆盒更加的轻便,便携。

    应用领域:

    集成电路制造

    光电行业

    微机械系统(MEMS)制造

    科研和实验室晶圆存储

    CQTPACK014Packing details

    Box name: 8-inch standard wafer cassette

    The 8-inch wafer cassette we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 8-inch (200mm) diameter wafers. Especially suitable for customers with high cleanliness requirements, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can avoid the damage caused by the collision between the chips in the transportation process, and also avoid the adhesion between the chips caused by electrostatic phenomenon

    Application field:

    Semiconductor manufacturing

    Microelectronics research

    Wafer storage and transportation

    包装盒名称:8英寸标准晶圆卡盒

    我们所使用的8英寸插片卡塞盒是专为半导体行业设计的高精度存储解决方案,适用于各类8英寸(200mm)直径的晶圆片。特别适合洁净度要求高的客户,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以避免晶片在运输过程中相互碰撞造成的损坏,同时也避免了由于静电现象造成晶片相互间的粘连

    应用领域:

    半导体制造

    微电子研究

    晶圆存储与运输

    CQTPACK015Packing details

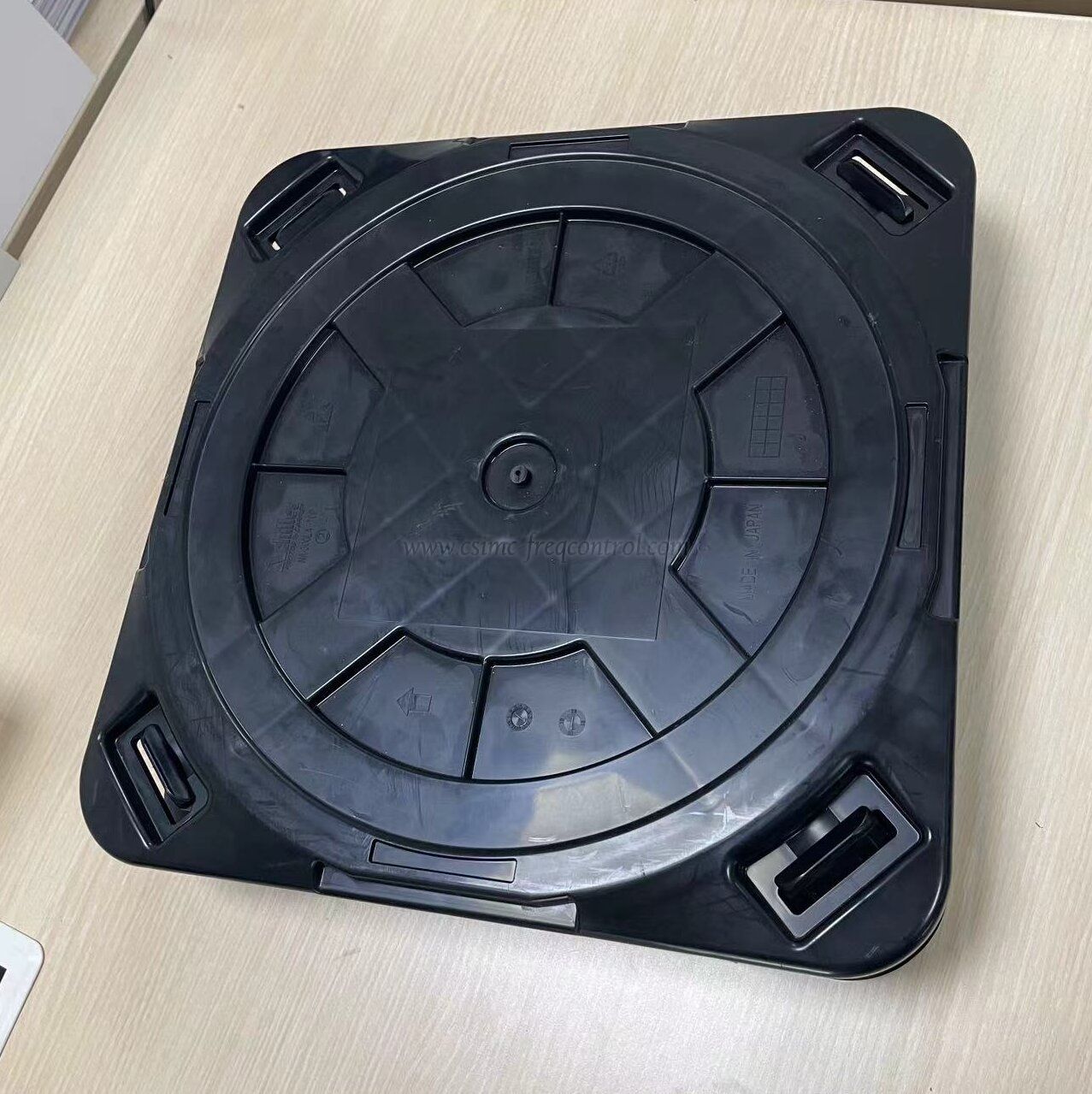

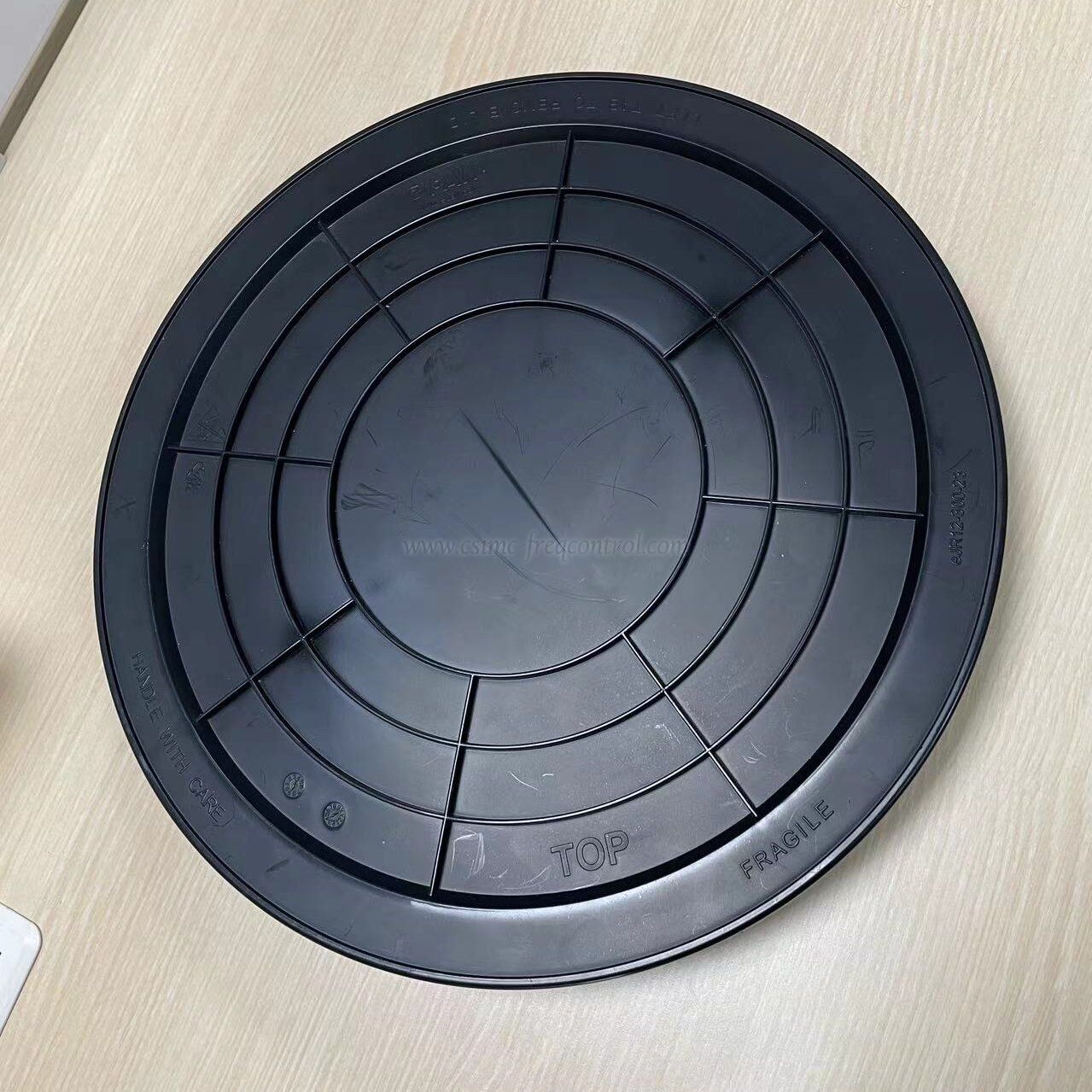

    Box name: 12-inch wafer JAR

    The 12-inch wafer JAR we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 12-inch (300mm) diameter wafers. Especially suitable for thick or ultra-thin wafers, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can greatly reduce the probability of damage caused by turbulence during transportation. This kind of wafer box is more light and portable.

    Application field:

    Integrated circuit manufacturing

    Photoelectric industry

    Micromechanical systems (MEMS) manufacturing

    Research and laboratory wafer storage

    包装盒名称:12英寸圆型晶圆盒

    我们所使用的12英寸晶圆盒是专为半导体行业设计的高精度存储解决方案,适用于各类12英寸(300mm)直径的晶圆片。特别适合厚度较厚或者超薄的晶圆片,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以大幅度降低晶片在运输过程中因颠簸而造成损坏的概率。此种晶圆盒更加的轻便,便携。

    应用领域:

    集成电路制造

    光电行业

    微机械系统(MEMS)制造

    科研和实验室晶圆存储

    CQTPACK016Packing details

    Box name: 12-inch wafer JAR

    The 12-inch wafer JAR we use is a high-precision storage solution specifically designed for the semiconductor industry and is suitable for a wide range of 12-inch (300mm) diameter wafers. Especially suitable for thick or ultra-thin wafers, the product uses advanced materials and manufacturing processes to ensure wafer protection and stability in a variety of environments. It can greatly reduce the probability of damage caused by turbulence during transportation. This kind of wafer box is more safe and reliable.

    Application field:

    Integrated circuit manufacturing

    Photoelectric industry

    Micromechanical systems (MEMS) manufacturing

    Research and laboratory wafer storage

    包装盒名称:12英寸圆型晶圆盒

    我们所使用的12英寸晶圆盒是专为半导体行业设计的高精度存储解决方案,适用于各类12英寸(300mm)直径的晶圆片。特别适合厚度较厚或者超薄的晶圆片,该产品采用先进的材料和制造工艺,确保了在各种环境下对晶圆的保护和稳定性。可以大幅度降低晶片在运输过程中因颠簸而造成损坏的概率。此种晶圆盒更加的安全,可靠。

    应用领域:

    集成电路制造

    光电行业

    微机械系统(MEMS)制造

    科研和实验室晶圆存储


    The file can be downloaded
